Application Analytics

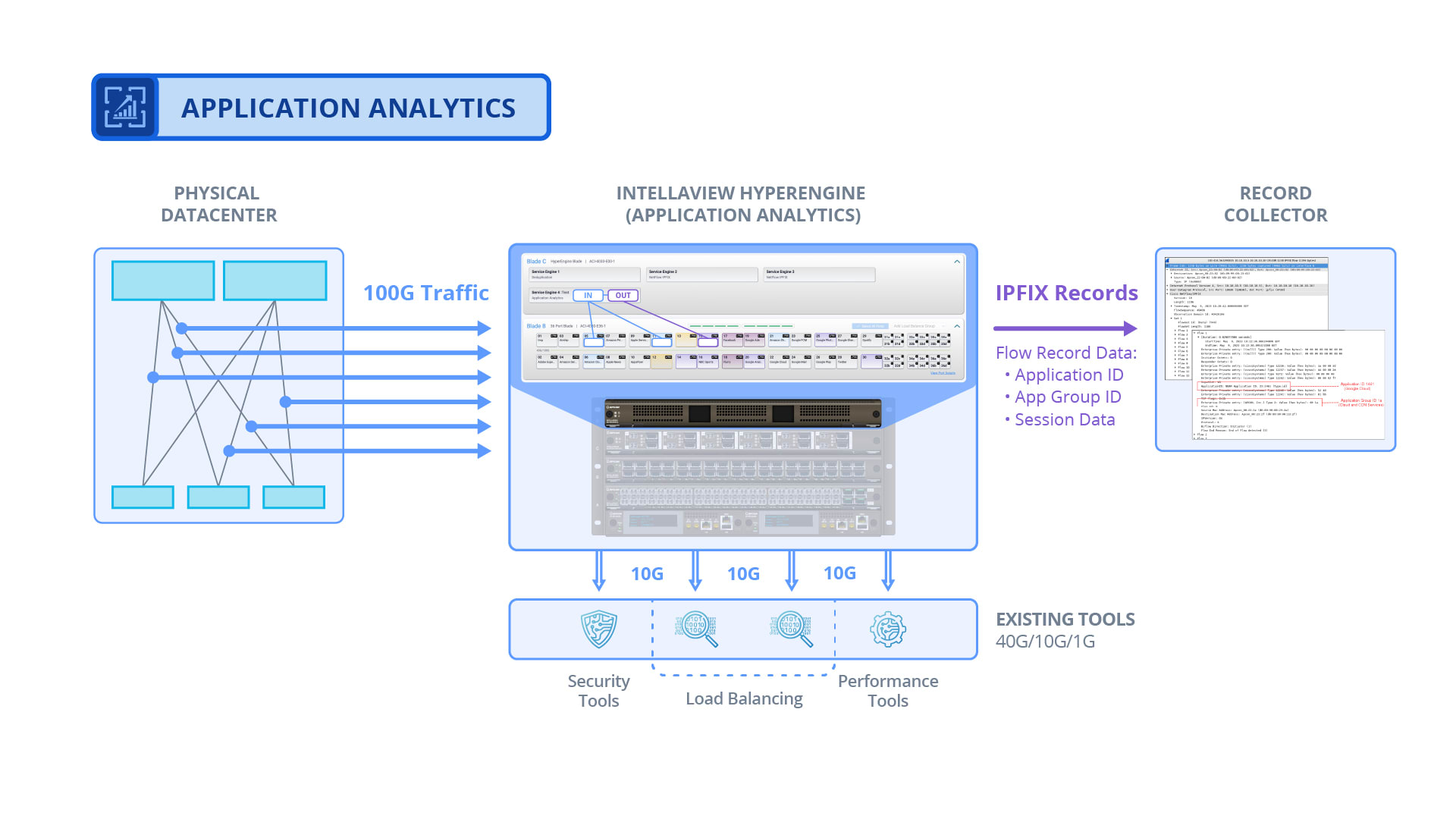

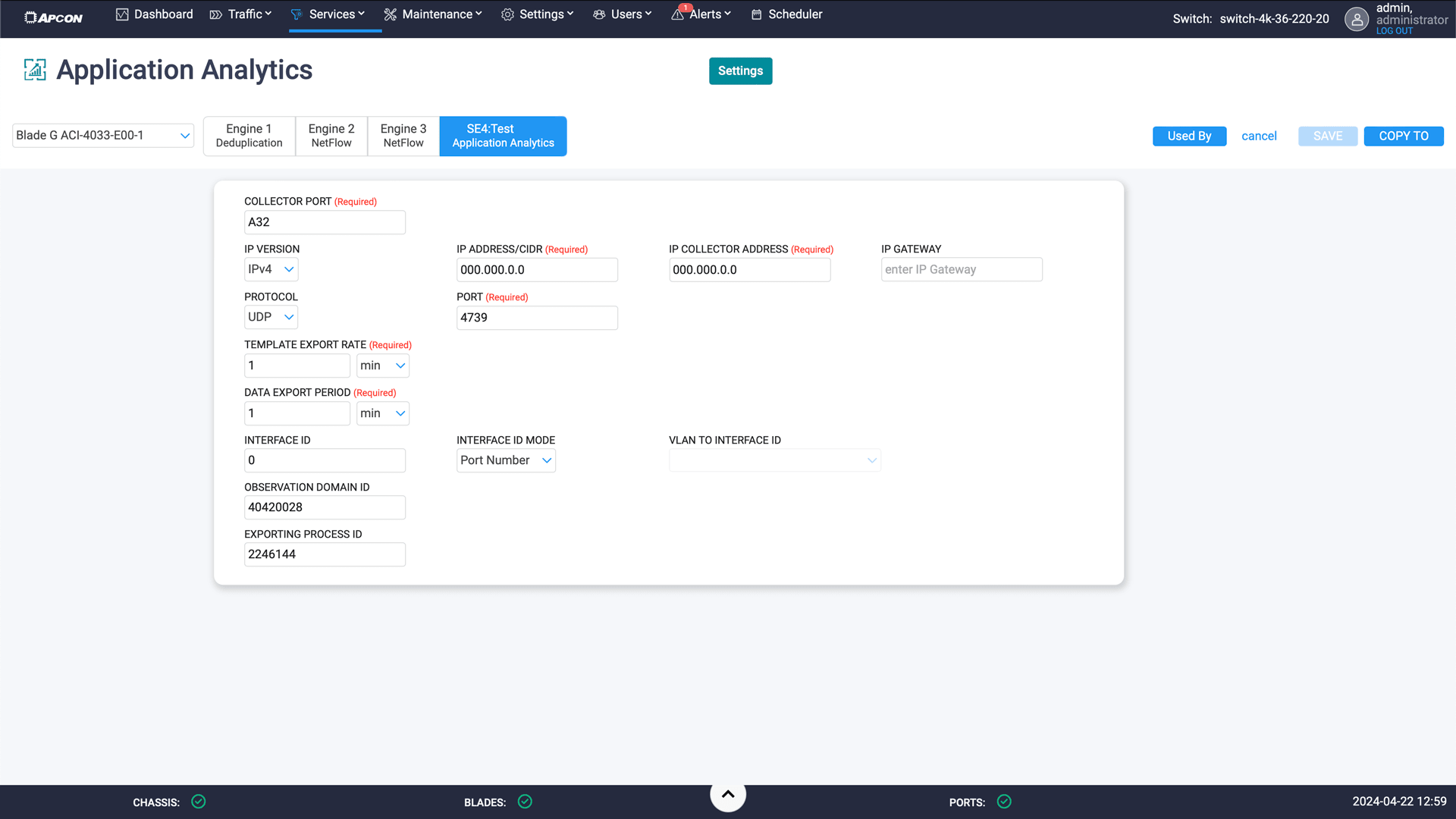

APCON delivers complete data transparency, and that commitment now extends to applications. With the deployment of an APCON HyperEngine blade, a world of data analytics is available. With IntellaView Application Analytics (license required), this service acts as a hybrid of Application Filtering and NetFlow. Like Application Filtering, it identifies the Layer 7 protocol or application and category, and like NetFlow, it exports IPFIX data to a collector system.


Preserve detailed flow record data

Application Analytics can drop all traffic or forward traffic to destination ports – in addition to exporting IPFIX records. The sessions/flows are bidirectional, so data is collected and maintained for both the client (initiator) and the server (responder). Session/flow match-criteria is based on client and server IP addresses, TCP/UDP/SCTP port numbers, and IP protocol.


  • IPFIX records are delivered to the Record Collector of choice

  • Determine and store the Application ID

  • Record the Application Group ID

  • Preserve all Session Data

  • The HyperEngine delivers all user-selected application data to performance monitoring and security tools


  • Use Application Analytics as a hybrid of Application Filtering and NetFlow

  • Perform application classification

  • Export Application Response Time calculations

  • Identify the Layer 7 protocol/application and category

  • Deliver IPFIX data to a collector system

See how it works

To get a clearer picture of how Application Analytics reveals actionable, in-depth application characteristics that are delivered to your collector system, click below to schedule a demo with an APCON representative.

Schedule a demo

Application Filtering hardware

IntellaView HyperEngine

The IntellaView HyperEngine offers flexible, user-selectable service options. These include advanced packet processing features such as Deduplication, NetFlow Generation, Application Filtering, Pattern Matching, or Traffic Shaping.
Explore the IntellaView HyperEngine

Performance up to 400G

Real time processing across 1G / 10G / 40G / 100G feeds, supporting up to 400G total throughput

Rapid, accurate detection with Application Filtering

Automatically detect over 1600 applications and 400 protocols in real time with a high degree of accuracy

The first page of a .pdf document with the title 'Ultra High Speed Packet Processing for Advanced Network Monitoring.'

IntellaView Datasheet

Ultra high-speed packet processing

With up to 400G processing capability, the IntellaView HyperEngine can effectively monitor every packet in the high-speed data stream to remove duplicates and improve tool efficiency. It also enables duplicate matching across Layers 3 and 4 headers and payload, and supports a large, configurable window size of up to 500ms.
