IntellaFlex XR Blades
Product information

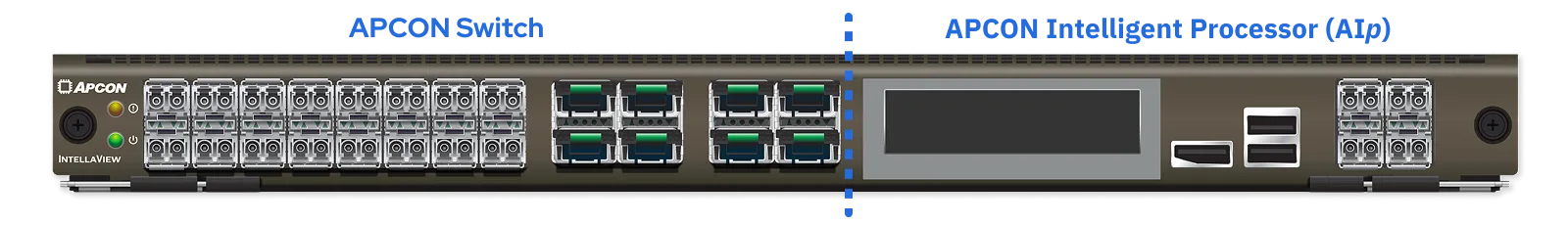

The IntellaStore II+ offers complete network visibility for midsize data centers and remote locations. This security visibility platform combines APCON's world-class Packet Aggregation and filtering technology with advanced features such as integrated traffic capture, storage, and onboard analysis tools. Network engineers can gain visibility into their networks in real time allowing for earlier security threat detection, investigation, and response.
Learn about our industry-leading support program
Product features and specifications
Features
Data monitoring switch with 12 ports 1G / 10G and 2 ports 40G
All ports include Aggregation, Filtering, Load Balancing, Trunking, Any-to-Any and Multicast Connections, Multi-Stage Filtering, and Port Tagging features
Multi-function ports (1–10) feature Packet Slicing, Deduplication, Timestamping, Protocol (Header) Stripping, (FabricPath, NVTAG, MPLS, GRE, VXLAN, and GTP-U), and multi-function pipeline. Optional NetFlow Generation and PCAP file export is available for external analysis.
Capture network activity in real time to fast onboard storage for traffic analysis software and data files
2 capture channels supporting up to 16 individual capture streams
Preloaded analysis, security, and performance applications
GRE Tunnel Initiation & Termination
TITAN software for centralized management, reporting, and notifications
Interface:
- 10 x 1G Ethernet (bank selectable) or
- 10 x 10G Ethernet (bank selectable) or
- 6 x 1G and 4 x 10G Ethernet (mix mode)
- 2 × 1G/10G Ethernet (individual select)
- 2 × 40G Ethernet
CE mark and ROHS compliant
Specifications
- SFP/SFP+
- 1000BASE-T/SX/LX, 10GBASE-SR/LR
- QSFP
- 40GBASE-SR4/LR4
- Management
- 2 LAN ports for system and applications (front)
- 1 LAN port for system (back)
- Easy-to-use WebXR GUI plus CLI, SNMP, and LCD
- USB
- 2 USB 3.0 ports
- Timing
- GPS and IRIG-B ports (and PTP, NTP software)
- Processor
- IntellaStore II+ — Intel® Xeon® E3 Class
- Power
- 170–200 Watts/580–682 BTU (no SFP/with SFP)
- Power Supply
- AC: 100 to 240 VAC auto-sensing 50–60 Hz
- DC: -48 VDC (-40 to -72 VDC)
- 1 minimum plus optional redundant power supply
- Dimensions
- 1.75 × 17.2 × 25.0 in (4.5 × 43.7 × 63.5 cm) 1RU
- Weight
- 21 lb / 9.5 kg
- Operational temp.
- 32 to 113 °F (0 to 45 °C)
- Storage temp.
- 40 to 158 °F (-40 to 70 °C)
- Relative humidity
- Operating: 10-85%, Storage: 0-95% noncondensing
- Safety
- UL 60950, EN 60950, CSA C22.2 60950
- EMC
- EN 55022, EN61000, FCC part 15, ICES 003
Related resources
IntellaFlex IntellaStore II+
Visibility, security, and performance
Our IntellaStore II+ all-in-one security visibility platform saves space, reduces resources needed for installation and implementation, and lowers overall maintenance costs.
Onboard traffic analysis tools
The IntellaStore II+ ships with a dedicated application processor pre-loaded with a Wireshark packet analyzer, ntop traffic analysis tool, and a 60-day trial of NetFort LANGuardian for Deep Packet Inspection, all on a Linux KVM software environment. Customers can also install VMware or Microsoft operating systems and 3rd party software applications.
High-speed packet monitoring
Twelve ports of 1G or 10G Ethernet and two ports of 40G Ethernet provide high-speed data network monitoring. All ports include Aggregation, Filtering and Any-to-Any and Multicast Connections.
Ten 1G / 10G ports also perform APCON’s advanced multi-function features including Deduplication, Load Balancing, protocol stripping, Timestamping, Tunneling and Packet Slicing. The Multi-Function Pipeline feature allows up to three operations to be performed on packets passing through a single port. Optional NetFlow Generation and PCAP file export is available for external analysis.
Boost efficiency.Reduce costs.
IntellaFlex Xr blades
IntellaFlex XR
40G Packet Aggregator
EOSACI-3030-E20-1
- High-density aggregator blade includes 20 ports 40G Ethernet
- Optimized for Ethernet network monitoring applications
- Network Monitoring Aggregation, Filtering, and Load Balancing
IntellaFlex XR
32-Port Packet Aggregator
EOSACI-3030-E32-7
- 24 ports 1G / 10G and 8 ports 40G Ethernet
- Optimized for Ethernet network monitoring applications
- Network monitoring Aggregation, Filtering and Load Balancing
IntellaFlex XR
36-Port Packet Aggregator
EOSACI-3030-E36-6
- 36 ports 1G / 10G Ethernet
- Optimized for Ethernet network monitoring applications
- Network monitoring Aggregation, Filtering and Load Balancing
IntellaFlex XR
Copper Bypass TAP
EOSACI-3030-T05-C
- Five 100M / 1G copper network ports paired to five 100M / 1G / 10G SFP appliance ports
- Heartbeat detection and automatic failover recovery
- Fail-safe monitoring of up to 5 inline tools
IntellaFlex XR
Optical Bypass TAP
EOSACI-3030-T05-M1/S1
- 5 optical bypass 1G / 10G switches
- Support for up to 7 inline appliances
- Fail-safe passive TAP in bypass mode
IntellaFlex XR
36-Port Multi-Function
EOSACI-3032-E36-1
- 36 ports 1G / 10G Ethernet
- Timing services: GPS, IRIG-B, PTP, PPS, NTP
- Packet Deduplication, Protocol (Header) Stripping, Packet Slicing, and Packet Timestamping
IntellaFlex XR
HyperEngine
EOSACI-3033-E02-1
- Performance up to 200G
- 16 internal service points, 2 40G Ethernet ports
- Packet Deduplication, NetFlow Generation, Tunnel Termination, Packet Slicing, Protocol (Header) Stripping, and Pattern Matching
IntellaFlex XR
EdgeSwitch
EOSACI-3420-EDG-1
- 48 ports of 1G / 10G and six ports of 40G
- Excellent port density for edge aggregation applications
- Any-to-any connectivity, Aggregation, Filtering, Port Tagging, Load Balancing, and multi-system Trunking as well as port statistics, system status, and configurable alerts
